FRAME HOUSE DESIGN STEPS G2, PDJ-5195

DESCRIPTION

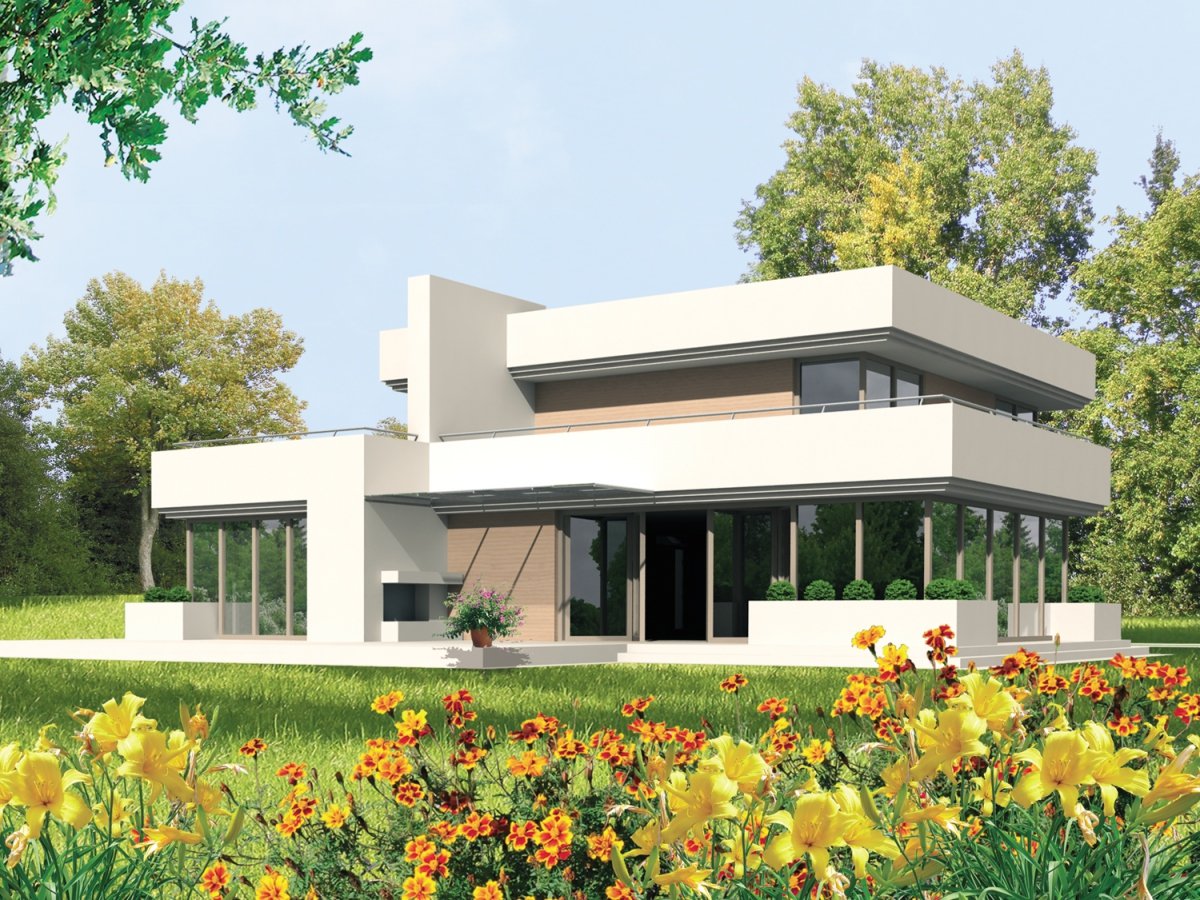

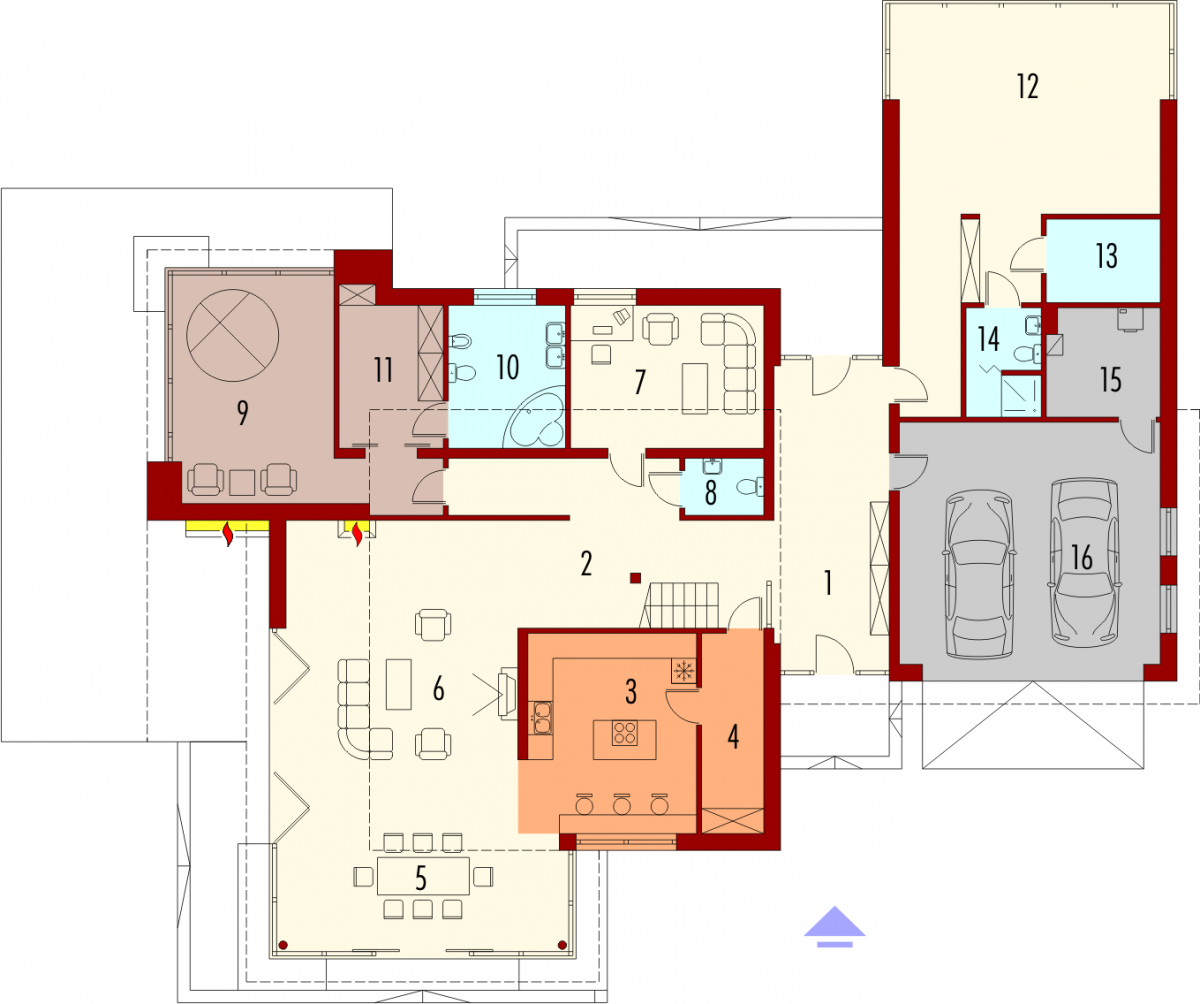

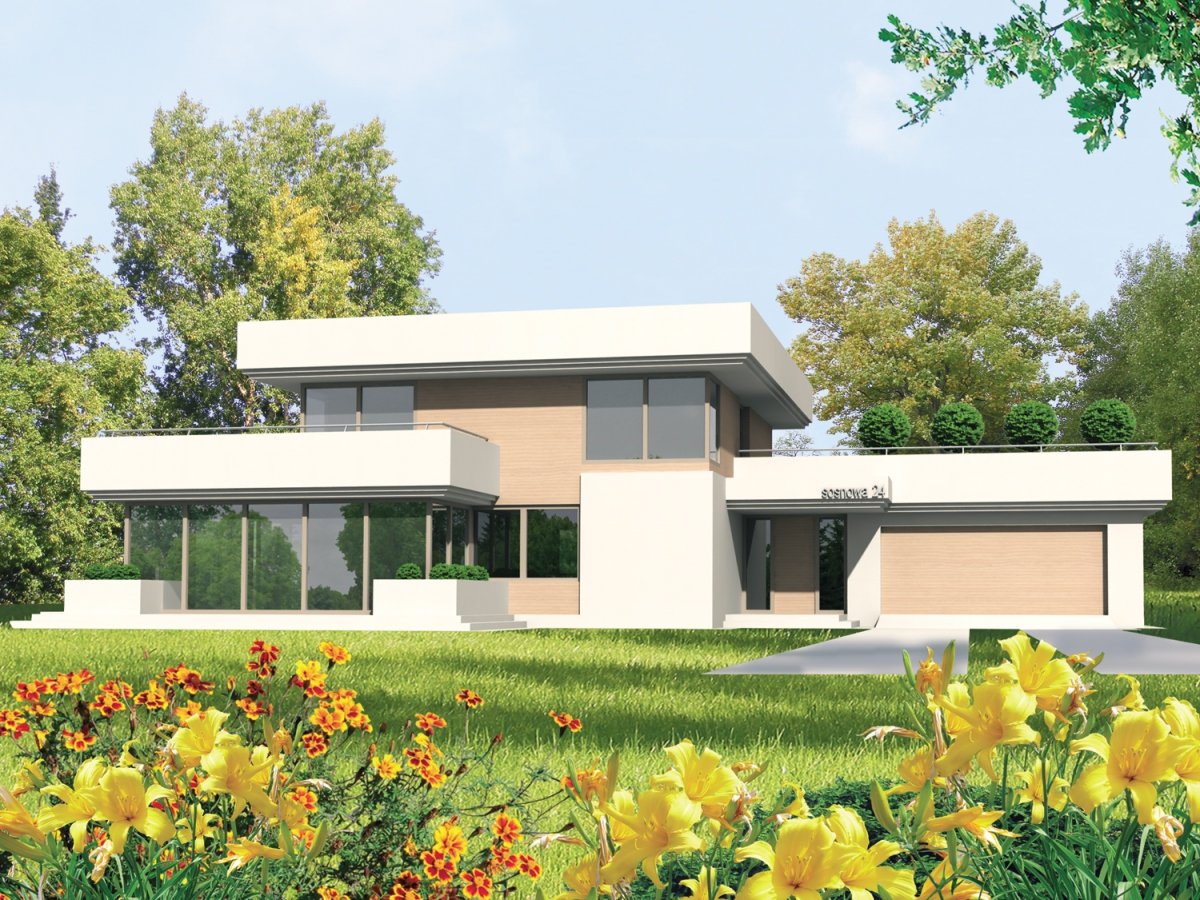

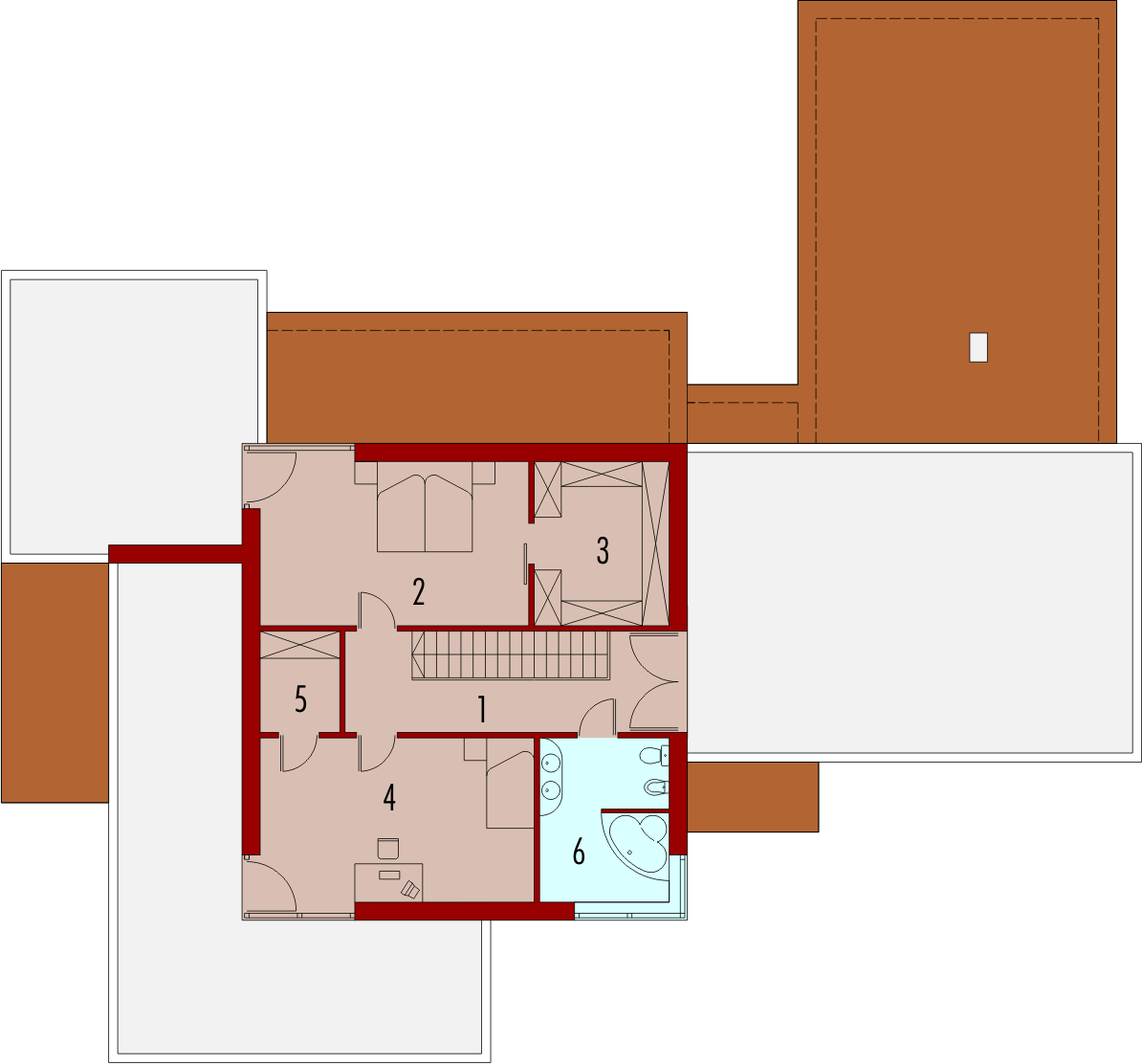

A two-story house, without a basement, with a built-in double garage, designed for a family of 5-6 people. On the ground floor – in addition to the extensive daytime zone with a living room, dining room and open kitchen – there is a study and bedroom with direct access to the garden. A recreational part is located just behind the garage. Other rooms of the night zone – two bedrooms with wardrobes and a bathroom – are located on the upper floor. The house was designed as a highly energy-saving and equipped with mechanical ventilation with heat recovery, heat pump, photovoltaic panels and solar panels mounted on the roof of the top floor.

TECHNICAL DATA

FRAME HOUSE DESIGN STEPS G2, PDJ-5195

Usable floor area: 318.73 m²

The built-up area is 335.08 m²

Cubic capacity of 1,190.15 m³

A depression angle of a roof 2.00 °

Roof area 223.55 m²

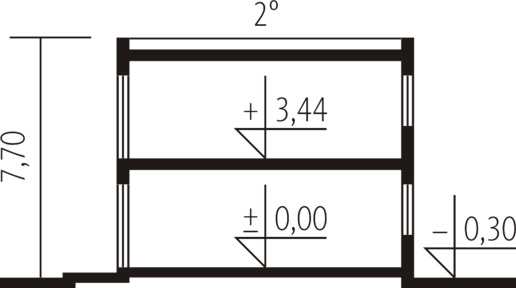

Building height 7.68 m

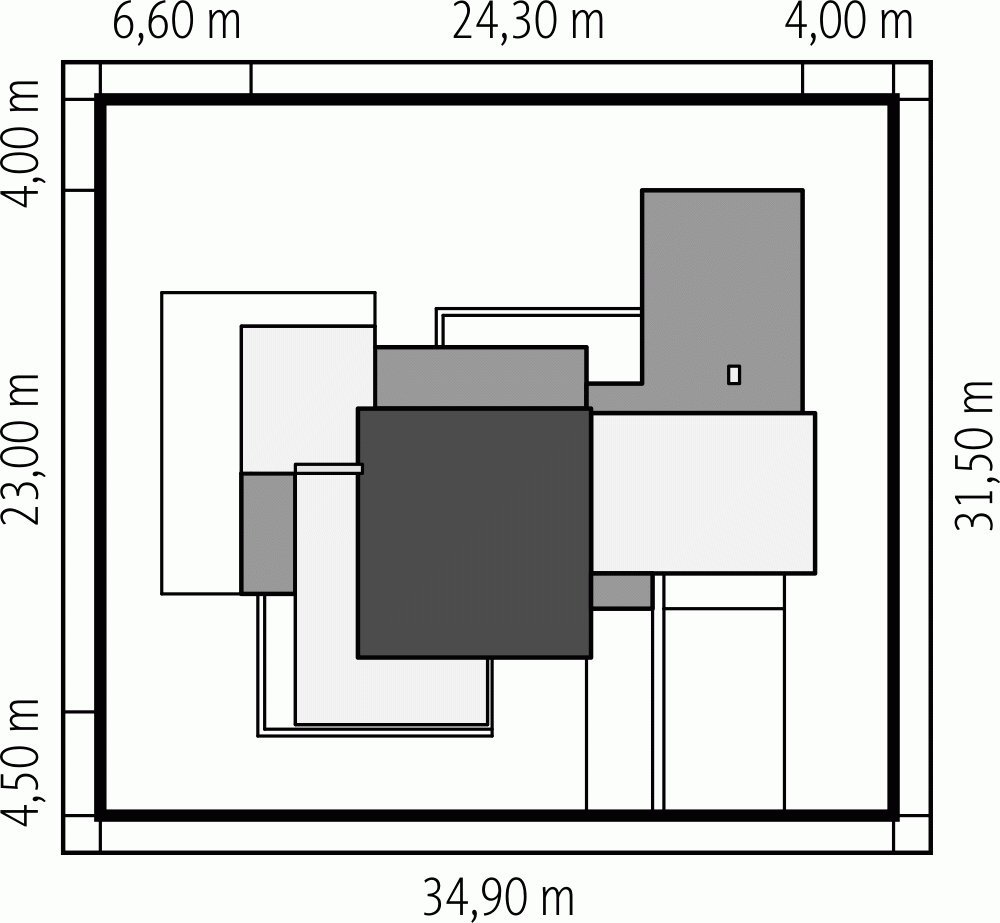

Min. Plot dimensions: 34.90×31.50 sq m

Garage 34.62 m²

Author Robert Wójciak

 Archipelago Studio
