TRADITIONAL HOUSE DESIGN HOUSE_08, PDJ -3749

DESCRIPTION

A two-story house with a modern shape for a family of 4.

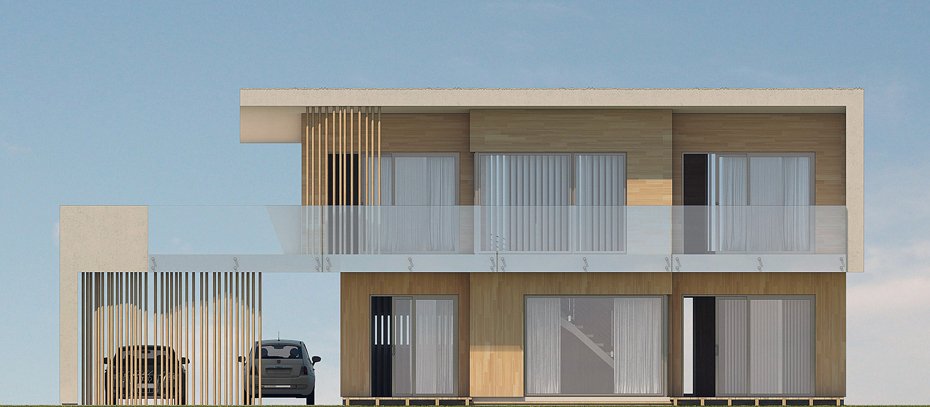

The body of the building is designed on a rectangular plan with a fragmented garden facade and large glazing in the living room and dining room.

The functional layout of the building has an entrance zone with a boiler room and toilet, a day zone with a semi-open kitchen connected to the dining room, a living room and a small living room with a fireplace connected to the staircase. On the first floor there is a private part, which consists of a bedroom with two wardrobes, two bedrooms, bathroom and laundry.



FUNCTIONAL PROGRAM:

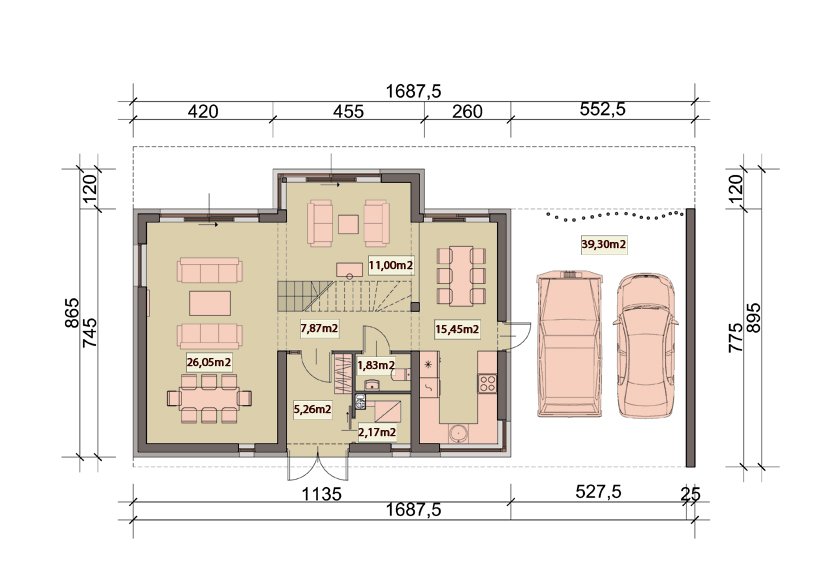

Ground floor: boiler room, hall + wardrobe, toilet, kitchen + dining room, living room + sitting room with fireplace, garage, covered terrace

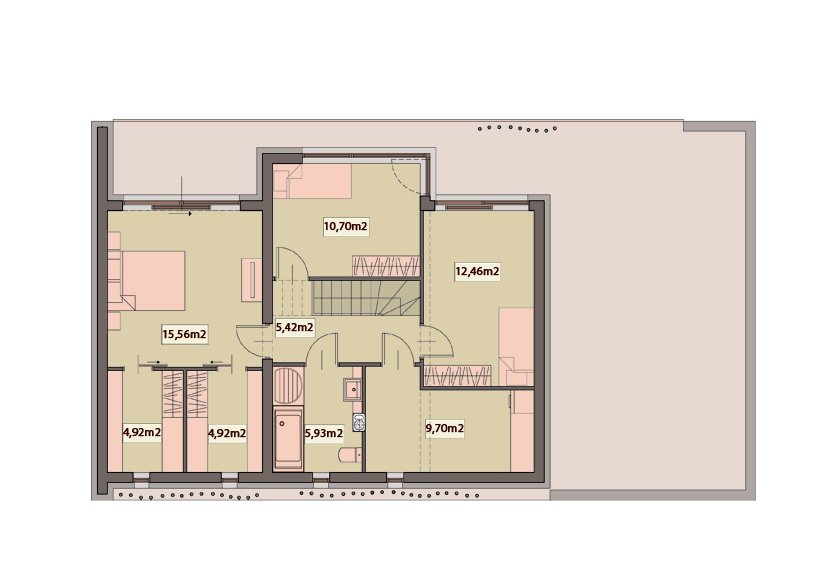

Floor: room with two wardrobes, 2 rooms, bathroom, laundry.

TECHNICAL DATA

TRADITIONAL HOUSE DESIGN HOUSE_08, PDJ -3749

Usable floor area: 141.92 m²

The built-up area is 192.75 m²

Cubic capacity of 1,141.80 m³

A depression angle of a roof 5.00 °

Building height 7.80 m

Min. Plot dimensions: 25.10×20.65 m

54.55 m² garage

Author arch. Renata Majchrzak

 AssaDesign studio
